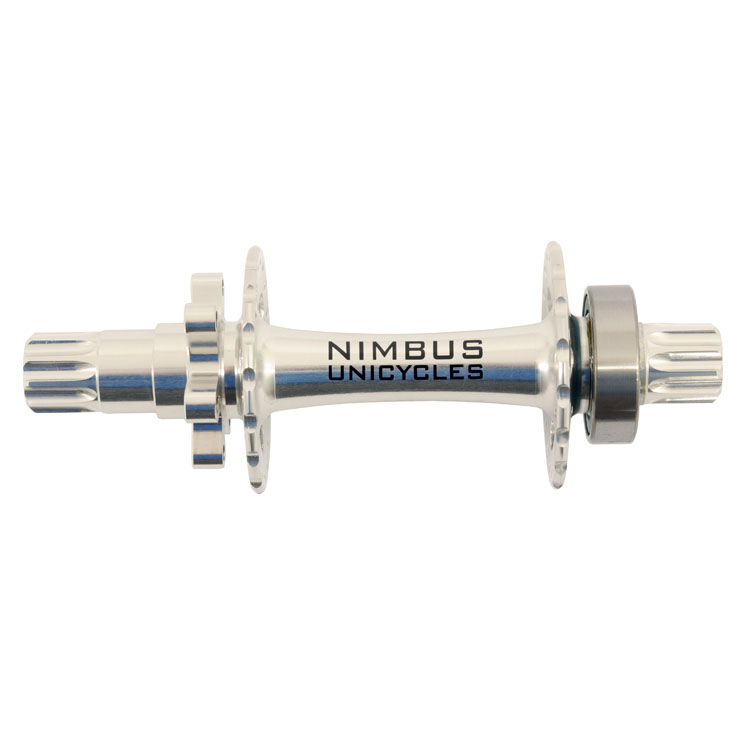

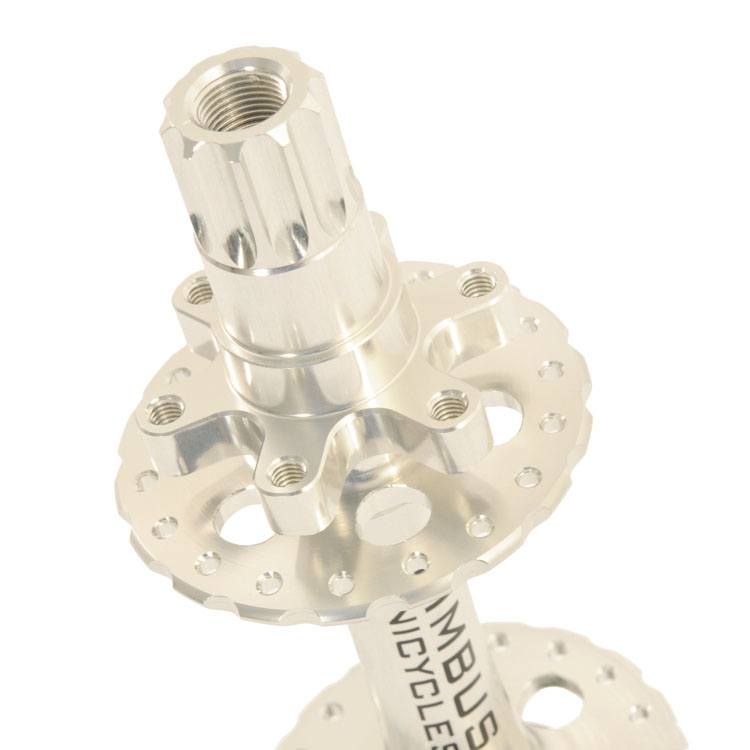

Nimbus ISIS Disc Alu Hub – 36 Hole (125mm)

Nimbus ISIS Disc Alu Hub – 36 Hole (125mm) as fitted to the Nimbus Oracle 32″ and 36″. This is a super high quality aluminium creak free hub that comes with the standard disc mount.

Features:

* ISIS spline is strong and creak free
* Machined from a single billet of hardened 7075 aluminium.
* Wide flange spacing for increased wheel strength.
* Flanges are dished to give the spokes optimum strength.
* Sealed, 42mm bearings with standard 125mm spacing
* 36 spoke holes
* Comes with pair of ISIS bolts.
* Weighs: 380g (inc. bearings, bolts and spacers)

Note: this hub will not fit in frames with machined bearing housing designed for 40mm bearings. It requires either pressed bearing housings or frames machined to take these larger bearings.

Hub flange width centre to flange (disc) = 29.5mm
Hub flange width centre to flange (non disc) = 49.5mm
Hub flange Diameter (D) = 55.8mm
Hub hole Diameter (S) = 2.8mm

Information on the spoke length for building a wheel can be found on our Spoke Calculator
