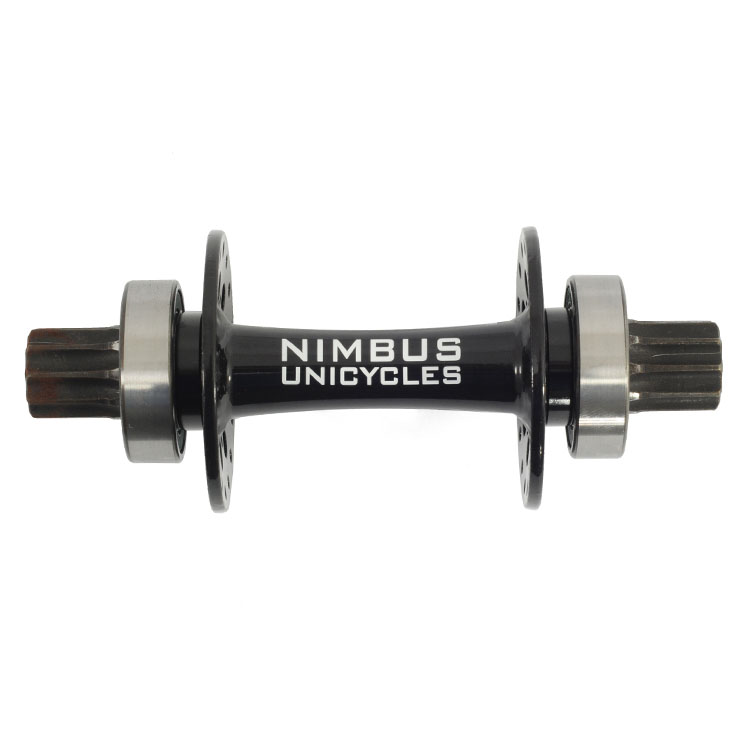

Nimbus ISIS Hub – 32 Hole

(2 customer reviews)

£64.90

Nimbus ISIS CrMO hub for 32 spoke wheels.

Out of stock

Email when stock available

SKU: hubNimbus32BLK

Features:

* ISIS spline is strong and creak free
* Tempered 4130 CrMO spindle
* Wide flange spacing for increased wheel strength.
* Flange material hardness and shape are designed to maximise spoke strength.
* Sealed, 42mm bearings with standard 100mm spacing

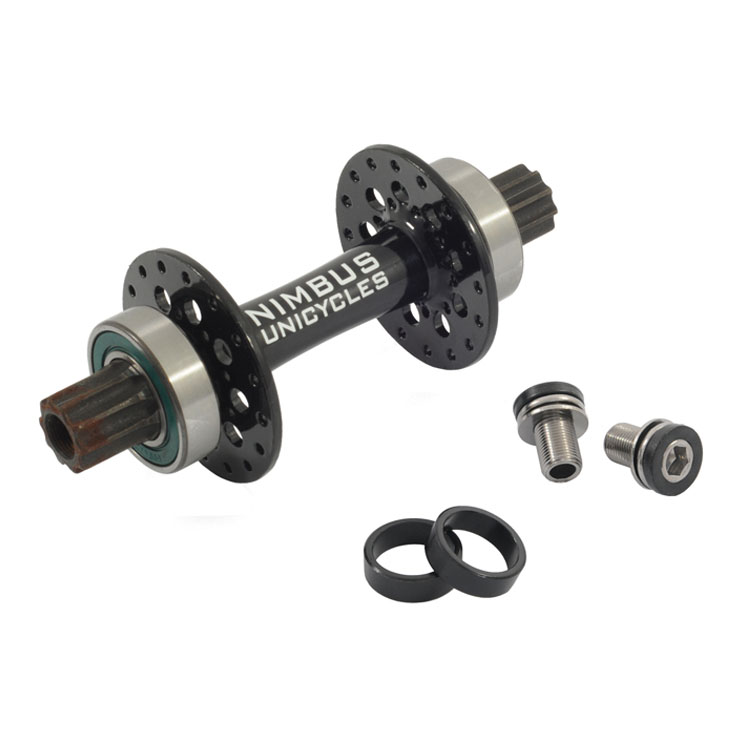

* 32 spoke holes * Comes with pair of ISIS bolts.
* Weighs: 530g (560g including bolts and spacers)

Note: this hub will not fit in frames with machined bearing housing designed for 40mm bearings. It requires either pressed bearing housings or frames machined to take these larger bearings.

Hub flange width (W) = 72.5mm
Hub flange Diameter (D) = 55.5mm
Hub hole Diameter (S) = 2.8mm

Information on the spoke length for building a wheel can be found on our Spoke Calculator
