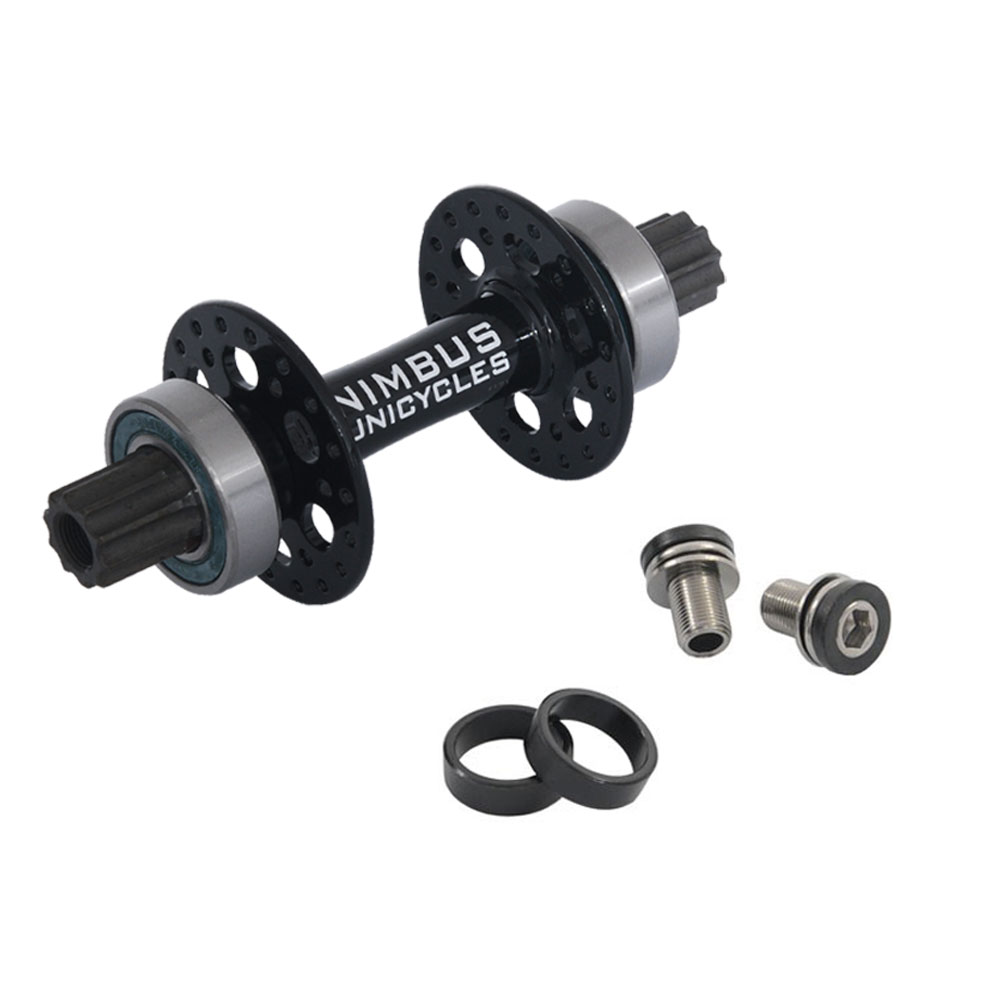

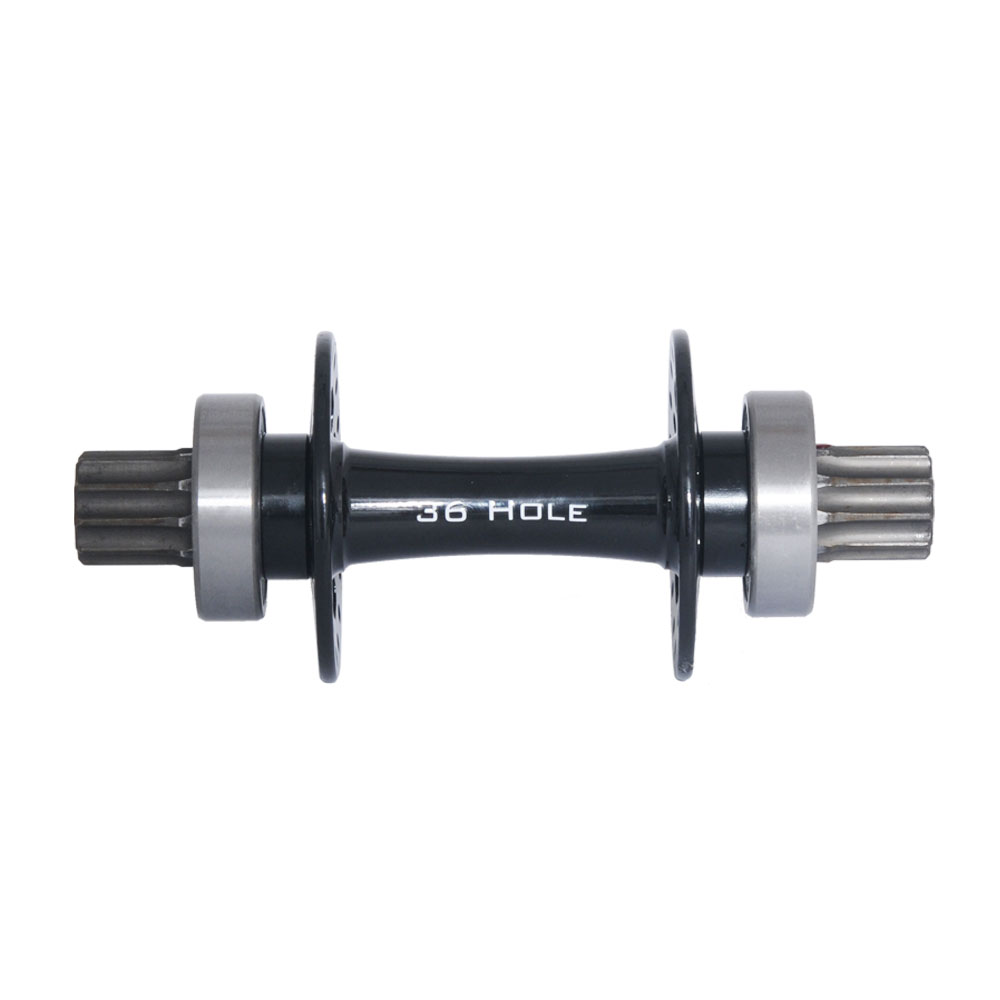

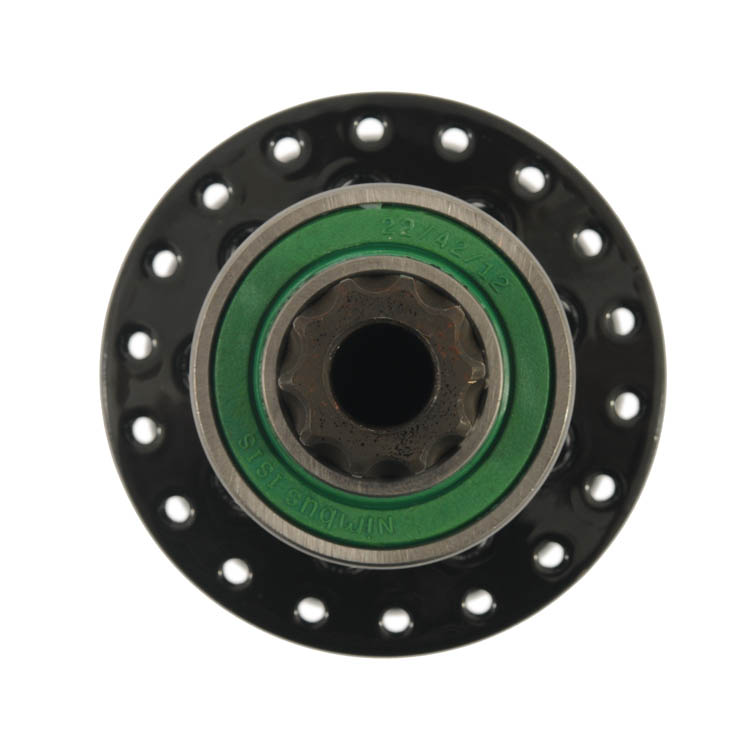

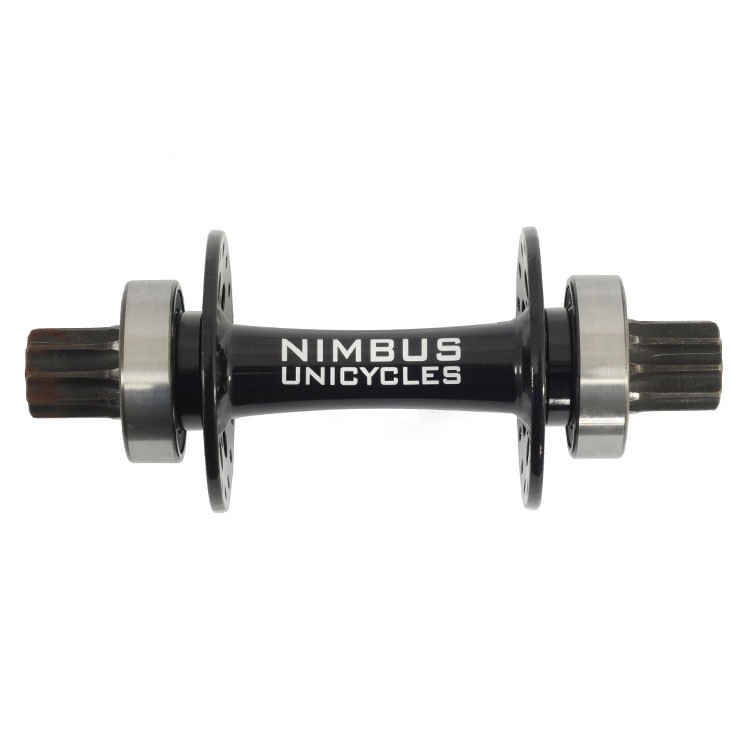

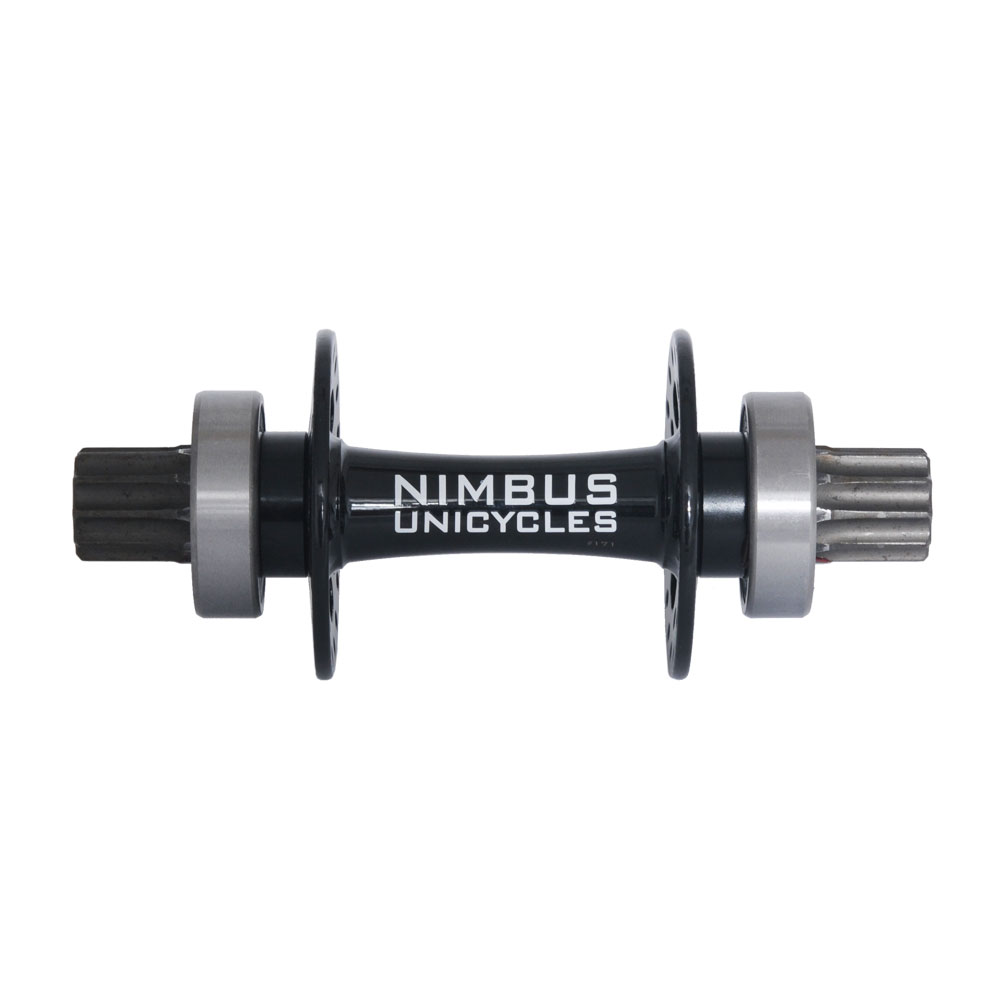

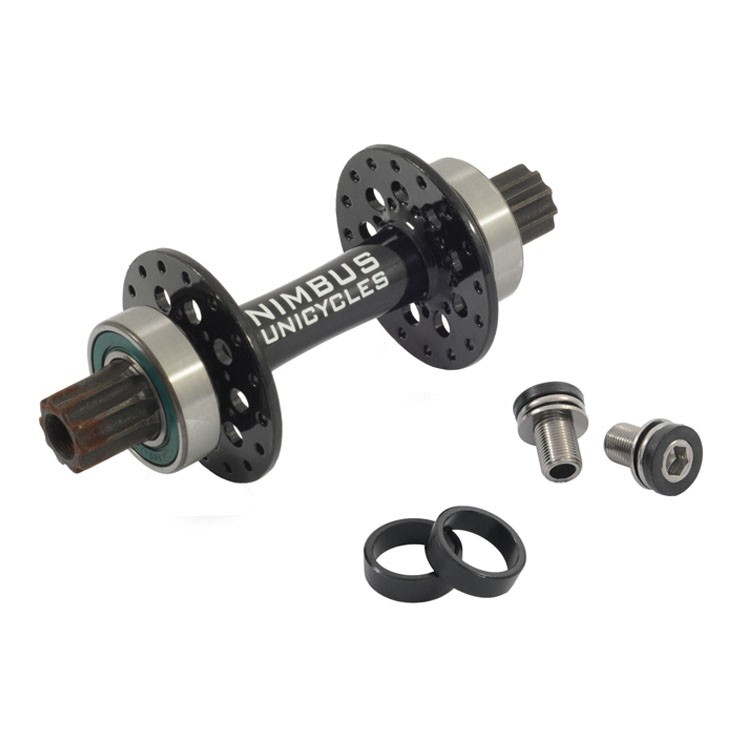

Nimbus ISIS Hub – 36 Hole

(2 customer reviews)

£64.90

This is the next generation of hub. It is built to be more robust and durable than the traditional cotterless hub.

In stock

SKU: hubNimbus36BLK

Features:

  • ISIS spline is strong and creak free
  • Tempered 4130 CrMO spindle
  • Wide flange spacing for increased wheel strength.
  • Flange material hardness and shape are designed to maximise spoke strength.
  • Sealed, 42mm bearings with standard 100mm spacing
  • Available with 36 or 48 spoke holes
  • Comes with pair of ISIS bolts.
  • Weighs: 530g (560g including bolts and spacers)

Compatible with all ISIS unicycle cranks except Koxx ISIS cranks.

Note: this hub will not fit in frames with machined bearing housing designed for 40mm bearings. It requires either pressed bearing housings or frames machined to take these larger bearings.

Hub flange width (W) = 62.8mm Hub flange Diameter (D) = 56.5mm Hub hole Diameter (S) = 2.8mm

Information on the spoke length for building a wheel can be found on our Spoke Calculator
